X-IO Technologies Visio collection:
X-IO's official Visio collection for their ISE Storage Systems
Collection created by VSD Grafx Inc, Questions can be sent to
VisioCafe |
|
|
| Collection News |
25-Feb-2014
X-IO Technologies launches their new Visio collection with stencils for their ISE Storage system |
|
| Current Stencils (Created by VSD Grafx Inc.) |
click picture for preview |
X-IO_ISE |

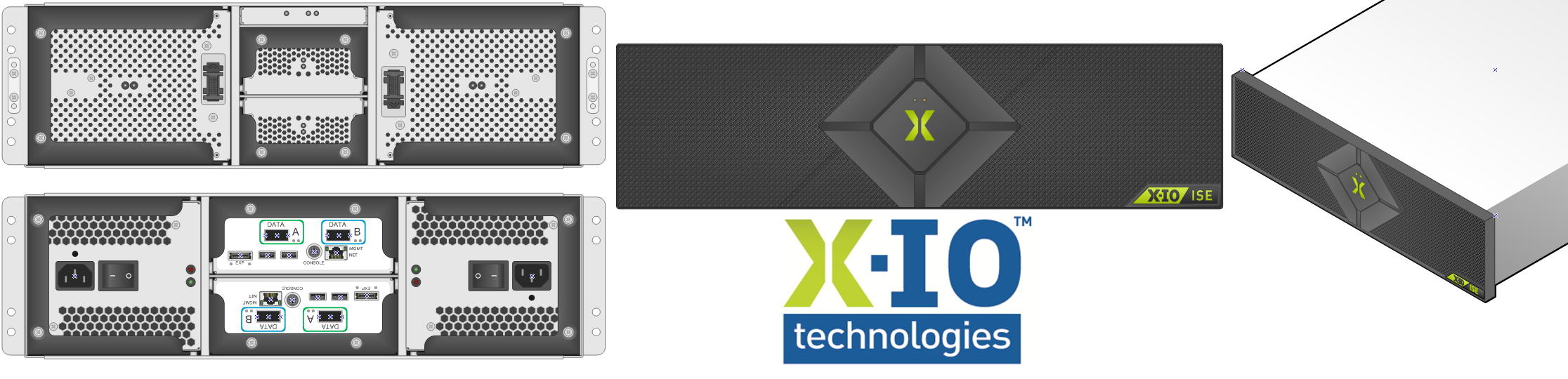

Front, rear and 3D views of X-IO ISE storage system |
2,598KB
25-Feb-2014 |
 |
|
Collection is compatible with Visio versions 2003 to 2016. Stencil folder is My Documents\My Shapes\ (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration. Use our
templates instead, they have all the right settings to make Visio much easier. |
|
|
|
