Nexsan Nexsan Visio collection: Nexsan's official Visio collection for their storage products.
Created by VSD Grafx Inc, Questions can be sent to VisioCafe
  Collection News
12-Jun-2015
Nexsan-NST-Series.vss - Added front and rear views for NST2000P and NST2000C
21-Nov-2014
Nexsan-NST-Series.vss - Added front and rear views for NST4000 and NST4000 Enterprise
             - Added front and rear views for Vault Protection Module 2
14-Apr-2014
           Nexsan launches their new Visio collection with stencils for their flash storage array products
  Current Stencils (Created by VSD Grafx Inc)   click picture for preview
.zip Nexsan-Assureon Front and rear views of Nexsan Assureon storage products
2,431KB

14-Apr-2014
Click for large view

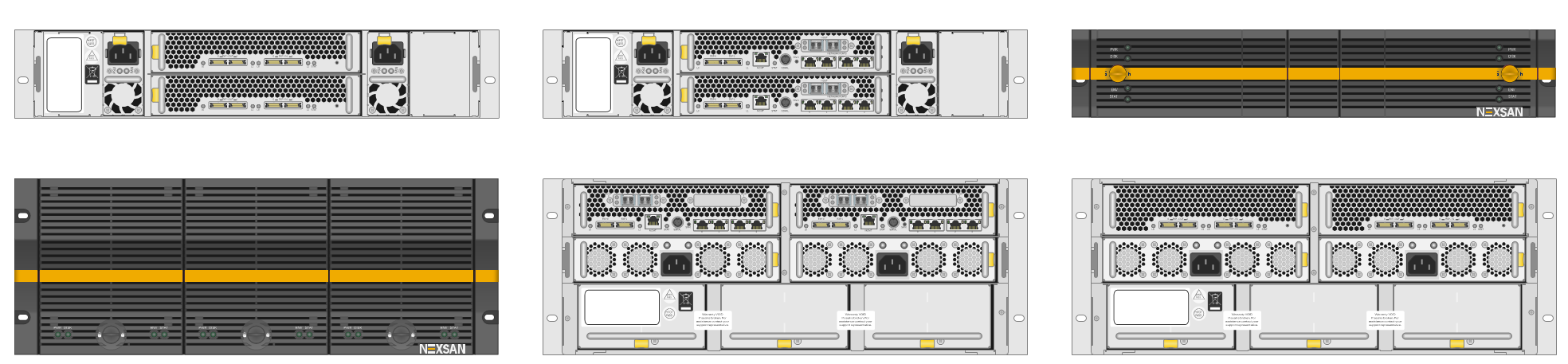

.zip Nexsan-E-Series Front and rear views of Nexsan E-Series storage products
14,949KB

14-Apr-2014
Click for large view

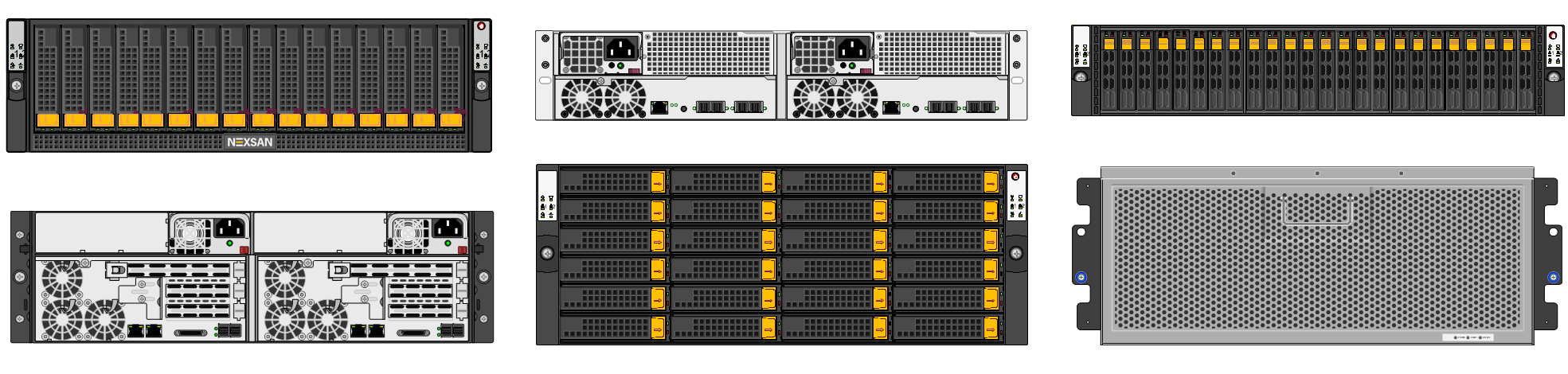

.zip Nexsan-NST-Series Front and rear views of Nexsan NST-Series storage products
14,258KB

12-Jun-2015
Click for large view

Collection is compatible with Visio versions 2003 to 2016.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.
