DriveScale DriveScale provides the only rack scale architecture that enables administrators to bring the full benefit of their scale-out investment to their organization.
Collection created by DriveScale, Questions can be sent to VisioCafe
  Collection News
28-Oct-2016
- DriveScale_DSA_VisioStencils.zip - Added front and rear views of the DriveScale DSA
  Current Stencils   click picture for preview

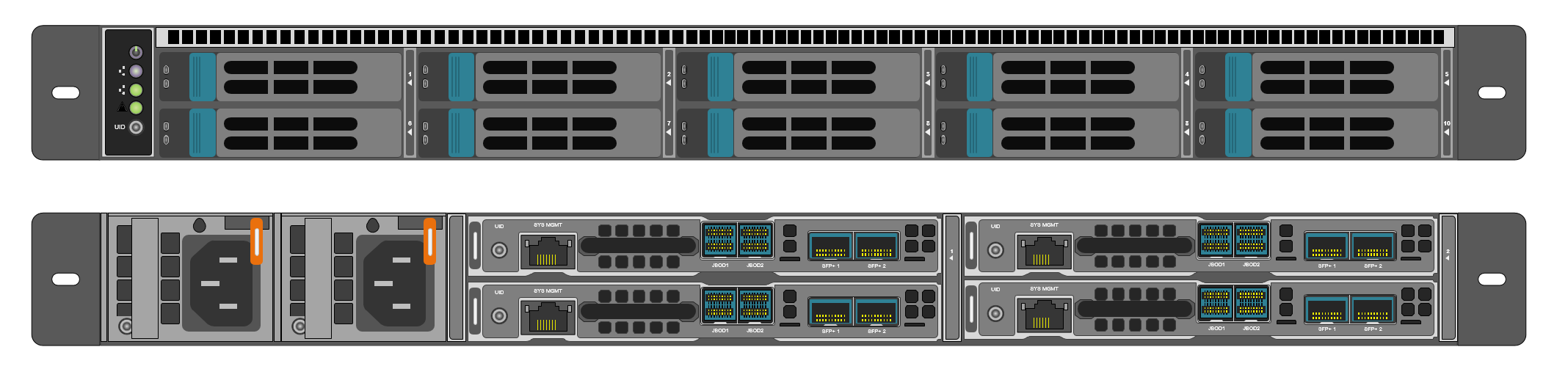

.zip DriveScale_DSA_VisioStencils Front and rear views of DriveScale DSA
204KB

28-Oct-2016
Click for large view

Collection is compatible with Visio versions 2010 to 2016.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.

DriveScale
