Qumulo Qumulo pioneered data-aware scale-out NAS, which enables enterprises to manage and store enormous numbers of digital assets by building real-time analytics directly into the file system. Qumulo Core is a software-only solution designed to leverage the price/performance of commodity hardware coupled with the modern technologies of flash, virtualization and cloud.
  Collection News
09-Jul-2018
      Qumulo added the K-Series Nearline Archive and P-Series High Performance appliances
      *July 16 UPDATE* K-Series stencil updated with top view
15-Nov-2016
      Qumulo added a stencil with new HPE Apollo 4200 Gen9 2U appliances (front bezel off and back)
25-Apr-2016
      Qumulo updated stencil with new QC-Series 1U and 4U hybrid storage appliances (front bezel-on, front bezel off and back)
04-Feb-2016
      Qumulo launches their new Visio collection with stencils for their scale-out NAS products
  Current Stencils   click picture for preview

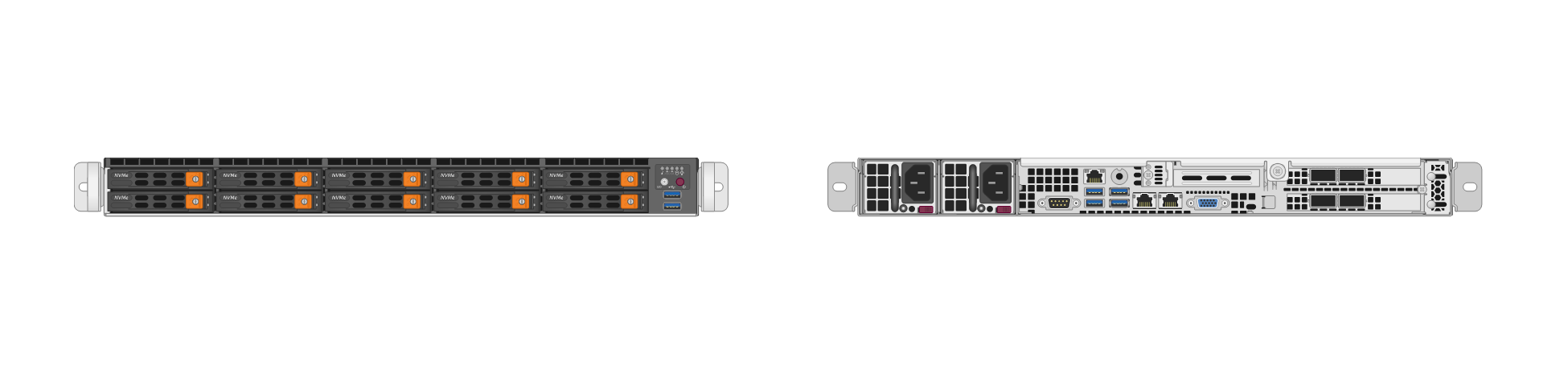

.zip Qumulo_K-Series Qumulo K-Series Nearline Archive hardware products
294KB

16-Jul-2018
Click for large view

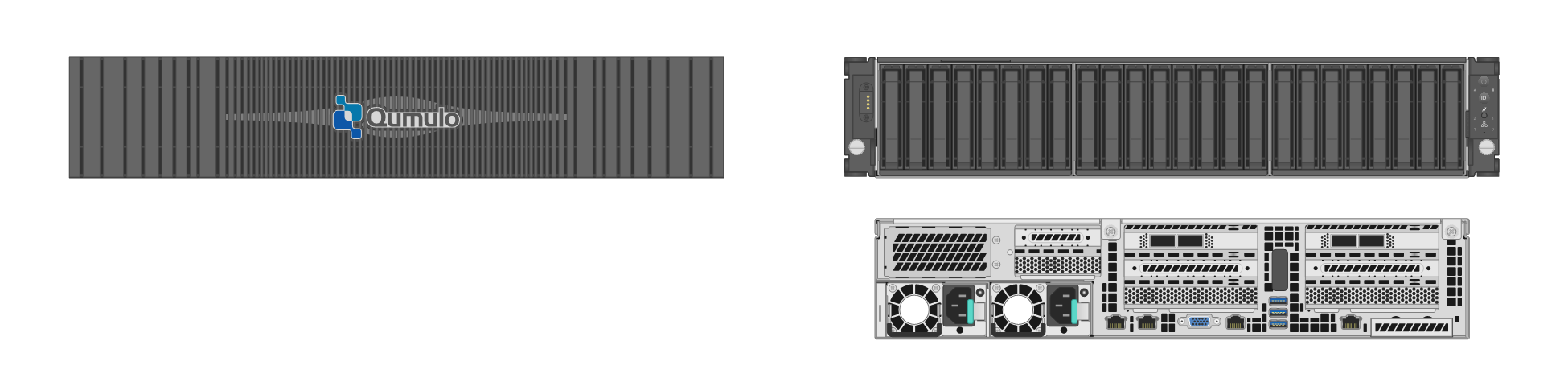

.zip Qumulo_P-Series Qumulo P-Series High Performance hardware products
247KB

09-Jul-2018
Click for large view

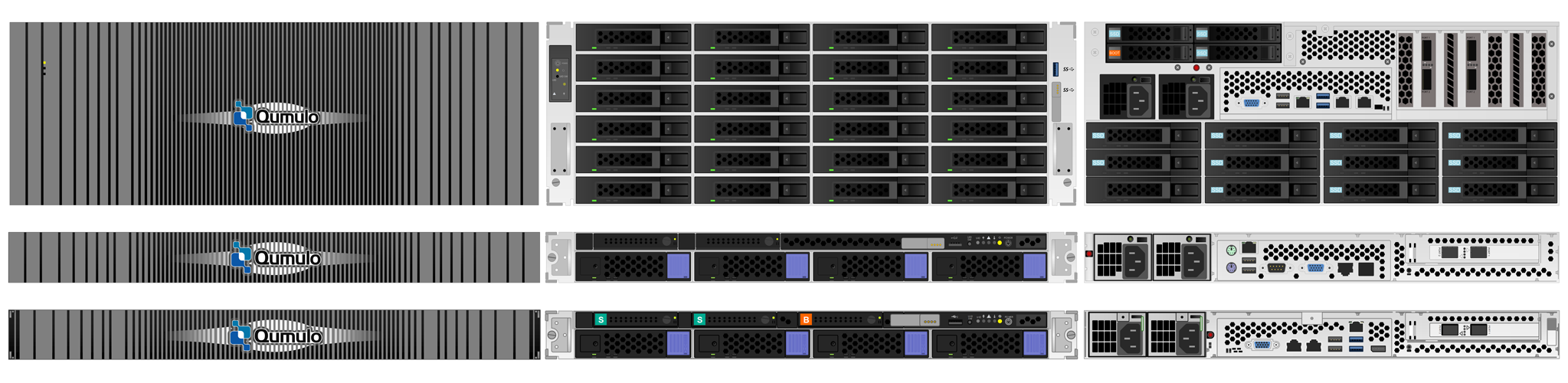

.zip Qumulo_QC-Series Qumulo QC-Series Hybrid Capacity hardware products
1,163KB

25-Apr-2016
Click for large view

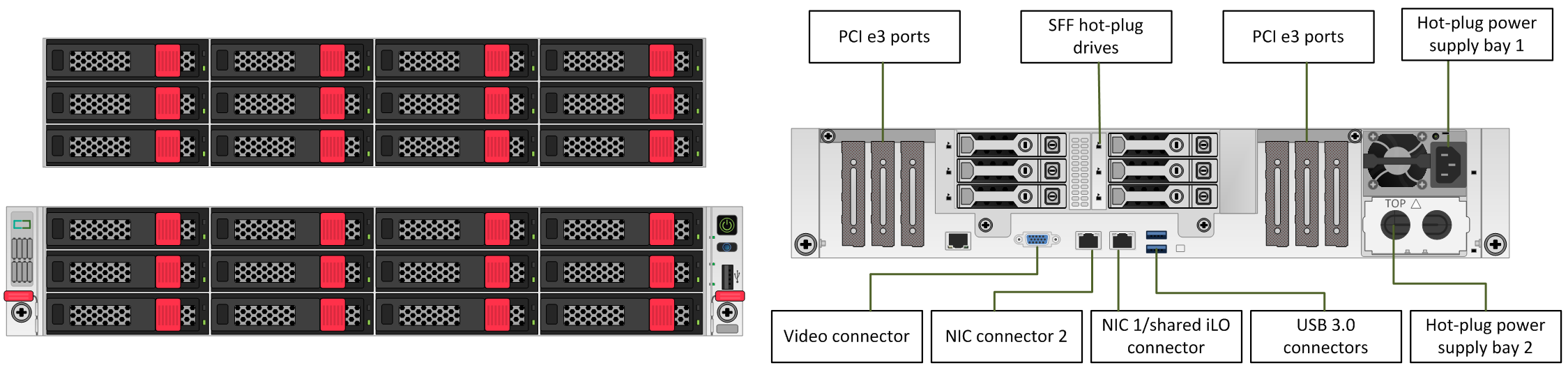

.zip Qumulo_HPE-Apollo-4200 Qumulo for HPE Apollo 4200
226KB

15-Nov-2016
Click for large view

Collection is compatible with Visio versions 2013 to 2016.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.

Qumulo
