Intel Intel's Visio collection: Intel's official Visio collection for their Server Products.
Collection created by VSD Grafx Inc, Questions can be sent to VisioCafe
  Collection News
10-Oct-2016
- Intel-Server-H2000KP-TP-Family.vss - Added front and rear views of Intel Server H2000KP-TP Family products
- Intel-Server-R1000WT-Family.vss - Added front and rear views of Intel Server R1000WT Family products
- Intel-Server-R2000WT-Family.vss - Added front and rear views of Intel Server R2000WT Family products

  Current Stencils (Created by VSD Grafx Inc)   click picture for preview

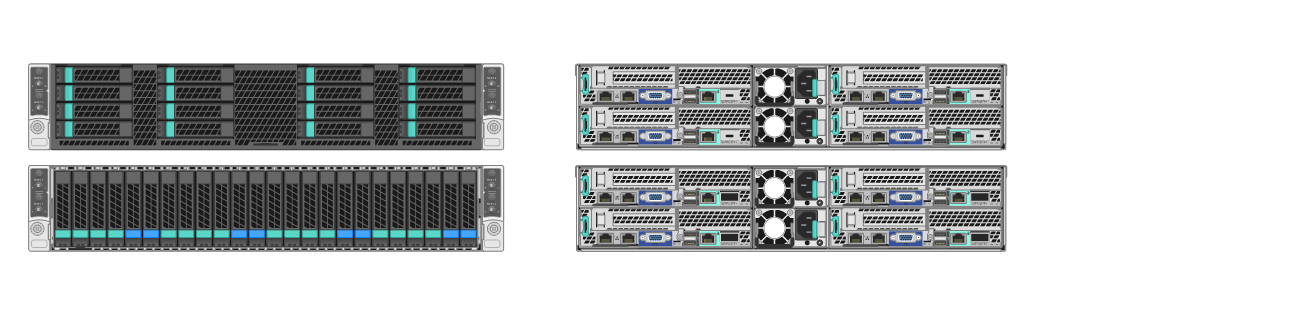

.zip Intel-Server-H2000KP-TP-Family Front and rear views of Intel Server H2000KP-TP Family products
2,375KB

10-Oct-2016
Click for large view

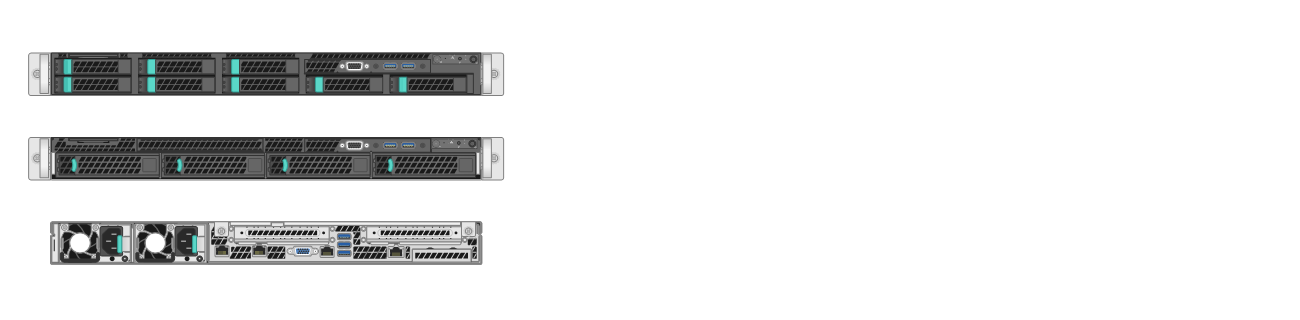

.zip Intel-Server-R1000WT-Family Front and rear views of Intel Server R1000WT Family products
482KB

10-Oct-2016
Click for large view
.zip Intel-Server-R2000WT-Family Front and rear views of Intel Server R2000WT Family products
1,900KB

10-Oct-2016
Click for large view

Collection is compatible with Visio versions 2010 to 2016.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.
